Dissolved Gas Equipment

Definitive solutions for verifying and maintaining oxygen, carbon dioxide, and nitrogen analysers.

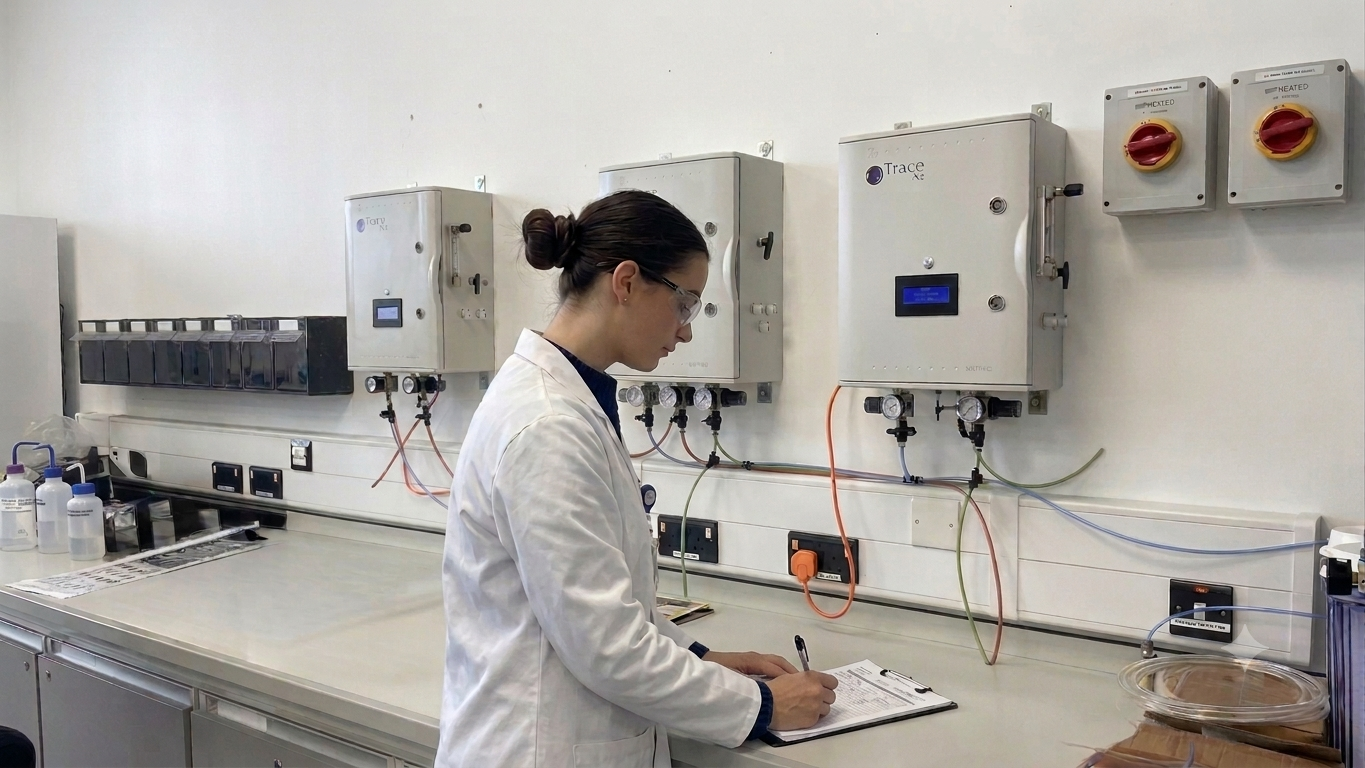

Trace Measurement Systems in Lab
±0.5% Accuracy
< 5min Setup Time

Verifier product range

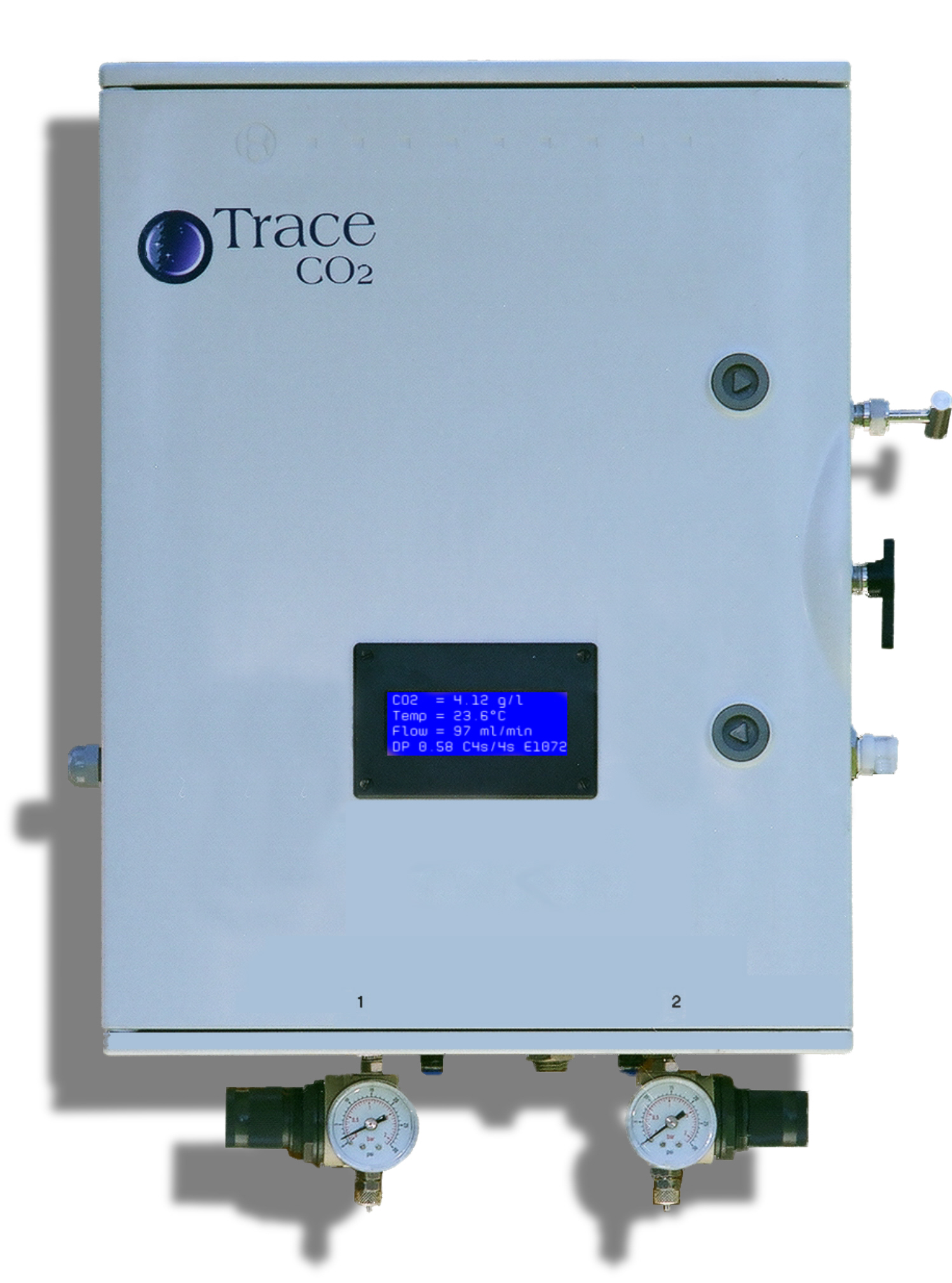

Trace Verifiers solve the problem of how to quickly and accurately test a dissolved gas analyser. They produce a continuous stream of water containing precise amounts of dissolved gas.

They can be installed in the laboratory for rigorous benchmarking or on packaging lines for rapid spot-checks. Simply connect your analyser to the verifier to see if it is working properly.

Supported gases

  • Dissolved Oxygen (O₂) - Low & high range
  • Carbon dioxide (CO₂)
  • Nitrogen (N₂)
Request a quote

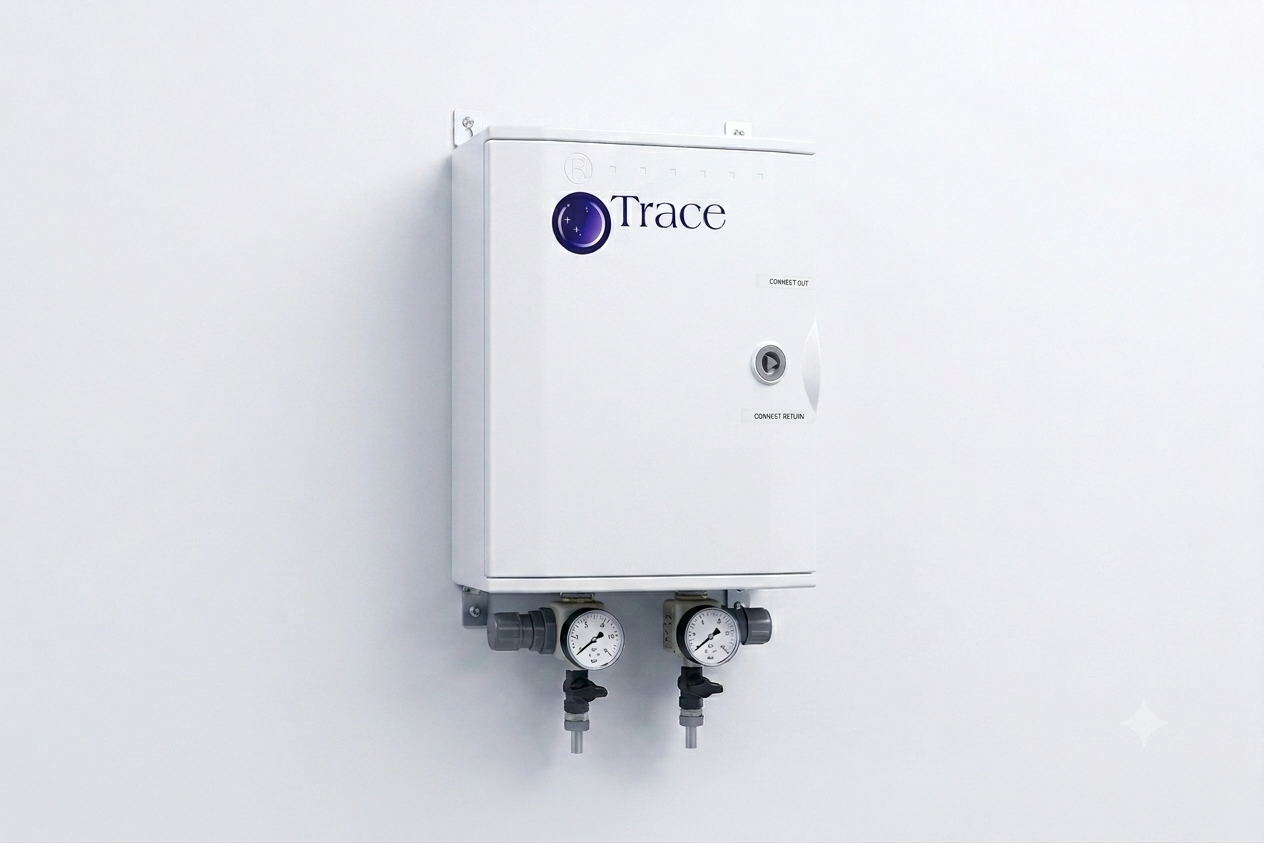

Trace Wash Unit

Trace Clean

Dissolved oxygen (DO₂) analysers rely on accurate, repeatable calibration to deliver trustworthy readings, but that accuracy is only as good as the water used to condition and clean the sensor.

Standard mains or lab water typically contains residual chlorine and dissolved oxygen, both of which can interfere with sensor performance, skew calibration results, and shorten the working life of delicate membrane and electrode components. Trace Clean addresses this directly by producing water that is stripped of both chlorine and oxygen, giving customers a reliable, ready-to-use medium specifically suited to DGA analyser maintenance.

Enquire about Trace Clean

Technical Specifications

Dimensions 34cm x 56cm x 12cm
Input Pressure 1.0 bar to 5.0 bar
Temperature Range 0°C to 30°C
Response Time Instantaneous (continuous flow)
Power Requirement 110-240v

* Specifications subject to change. Contact us for the latest data sheets.

Need help calculating gas levels?

Use our interactive tool to determine saturation based on your conditions.

Launch Calculator
